A historic paper from the Journal in 1961 summarising the investigation and selection of Crossbar Switching Equipment for the Australian Telephone Network.


Around the end of 1959, the Australian Post Office (APO, later split into Telecom Australia and Australia Post) made the decision to standardise on the L M Ericsson register-controlled crossbar switching system for the Australian Telephone Network. This was a controversial decision given the entrenched position of step-by-step equipment with its British heritage. The historic paper (Banks E. R. 1961) details the rigorous investigations over the previous three years to identify the type of switching system best suited to the requirements for economic and efficient expansion of the Australian Telephone Network.

The paper comprises three parts, namely:

  1. the circumstances leading up to the investigation and the factors underlying the analysis and decisions;
  2. the system adopted; and
  3. the way in which the equipment will be integrated into the network.

It is evident to the reader that the APO were extremely thorough in their investigations and mindful of the need to accommodate a trebling of the subscriber numbers in the next twenty years. Similarly, the equipment needed to support future subscriber trunk dialling and the separation of routing and dialling for increased efficiency.

A number of key requirements were identified and used to rank the switching system alternatives. Taking all these requirements into consideration, it was clear that the most desirable switching system for use in the Australian network was a link-trunked crossbar system. The crossbar system was fully developed and tried in local, rural and trunk transit applications and worked successfully with step-by-step networks. Of the systems on offer, the L M Ericsson register-controlled crossbar equipment was chosen as most nearly fulfilling the requirements.

Initially, the Ericsson crossbar switches were manufactured under licence by STC and TEI in Australia, who were supplying the step-by-step equipment at that time. In 1960, Ericsson purchased Trimax Transformers Pty Ltd, which was renamed L M Ericsson Pty Ltd (Ericsson Australia) in 1963. Soon after, a new production plant was built by Ericsson at Broadmeadows in Victoria (Spongberg, C. A. 1967) and was the subject of a previous historic paper in this Journal (Moorhead S. 2015), which resulted in Ericsson capturing one third of the market for public telephone exchanges in Australia.


Banks E. R. 1961. Crossbar Switching Equipment for the Australian Telephone Network, Telecommunication Journal of Australia, Vol. 13, No. 2, October 1961, pp. 85-113.

Spongberg, C. A. 1967. Establishing L. M. Ericsson Crossbar Production in Australia, Telecommunication Journal of Australia Vol. 17, No. 2, June 1967.

Moorhead S. 2015. Ericsson Celebrates 125 Years in Australia, Australian Journal of Telecommunications and the Digital Economy, Vol. 3, No. 4, December 2015.

The Historic Paper

E. R. Banks Photo and Bio Content

First page of historical paper

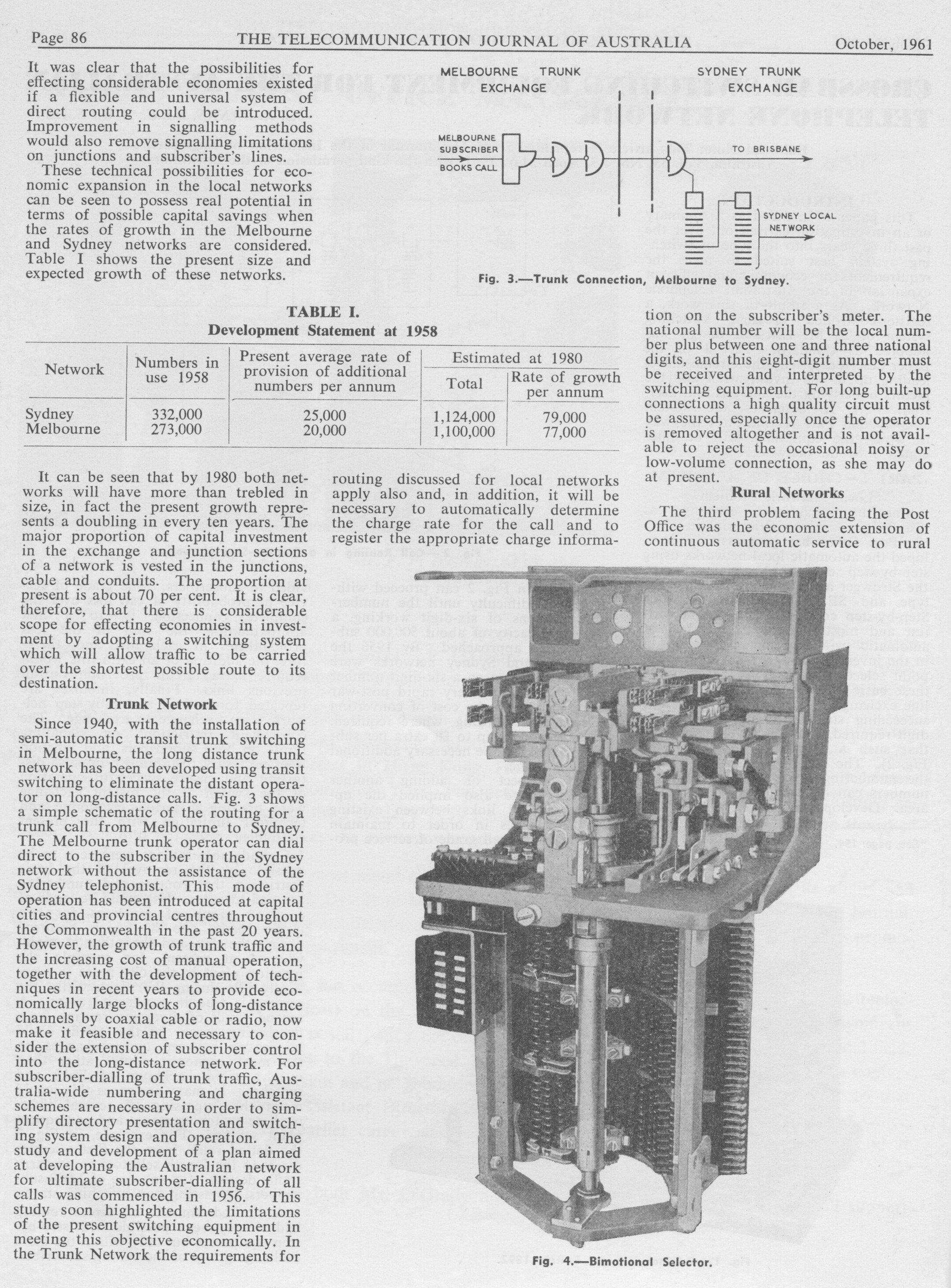

Second page of historical paper

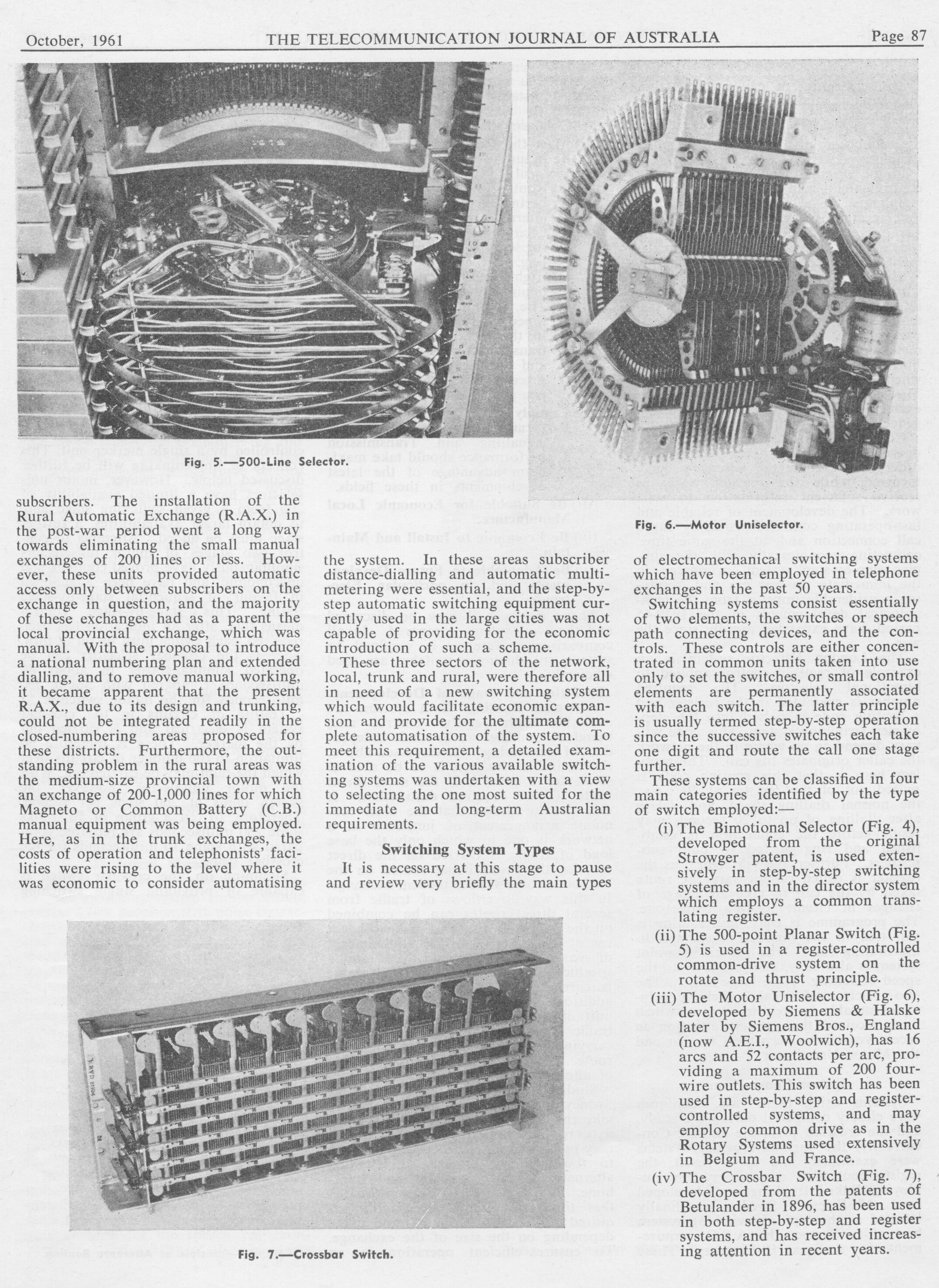

Third page of historical paper

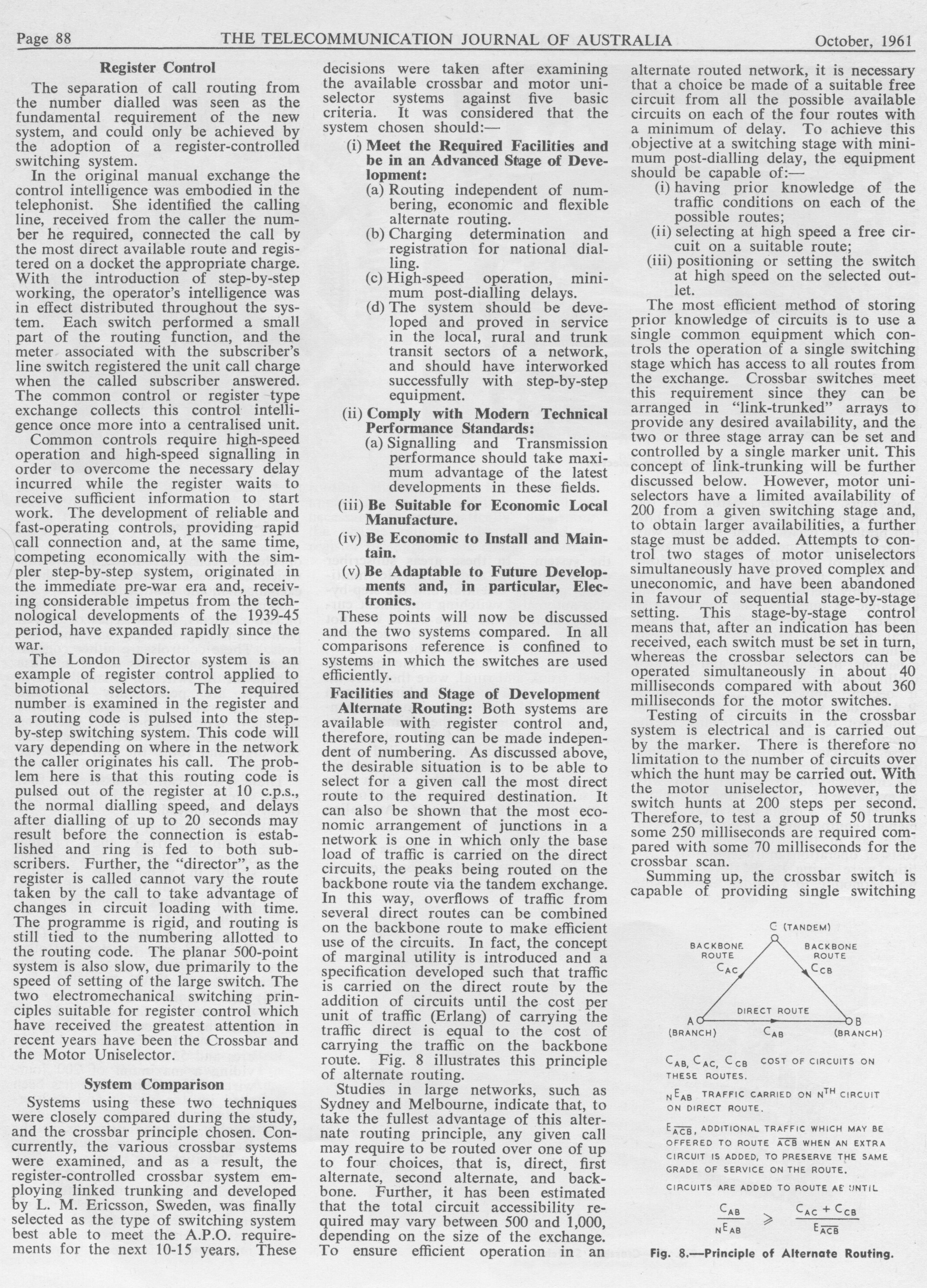

Fourth page of historical paper

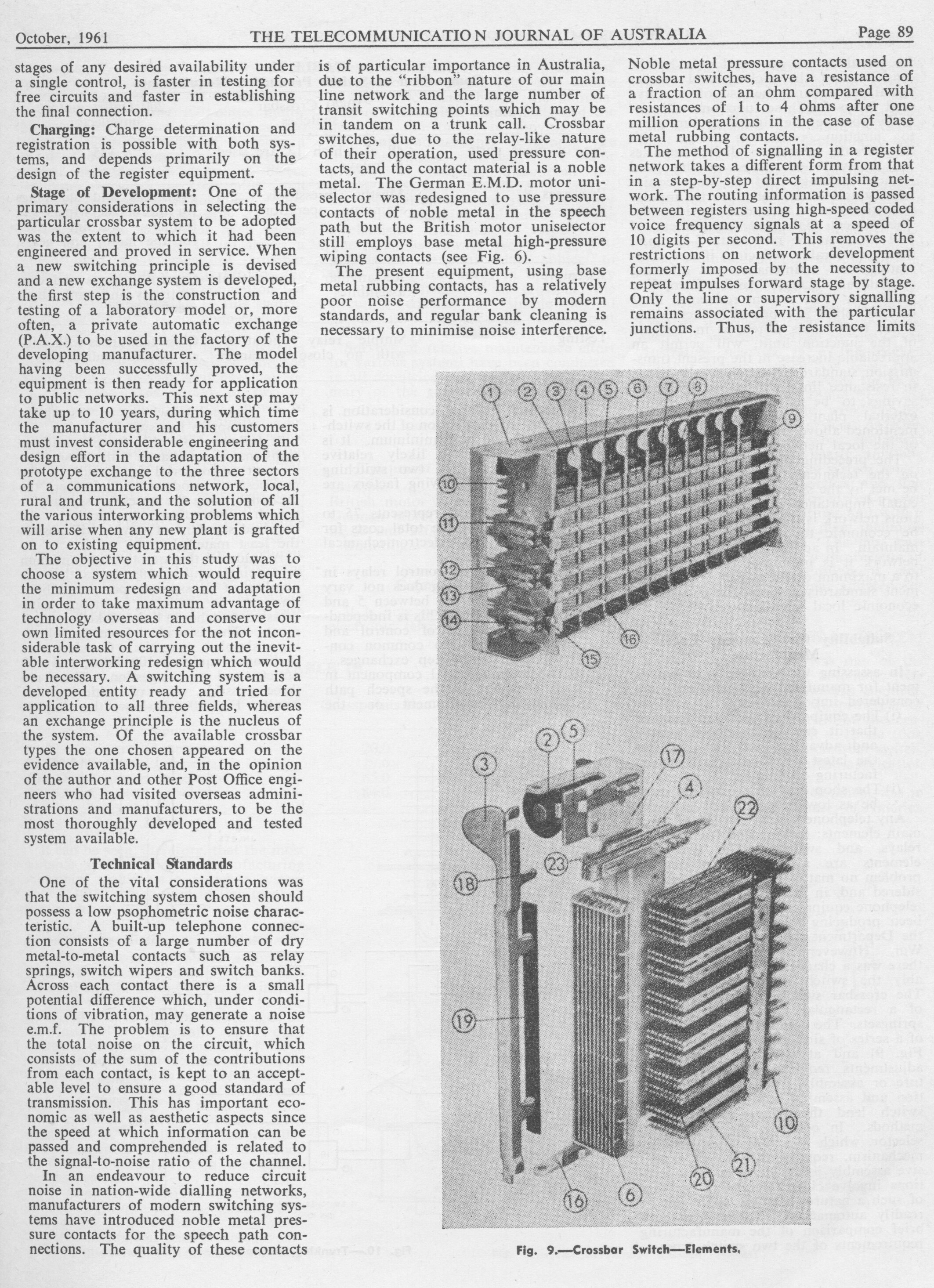

Fifth page of historical paper

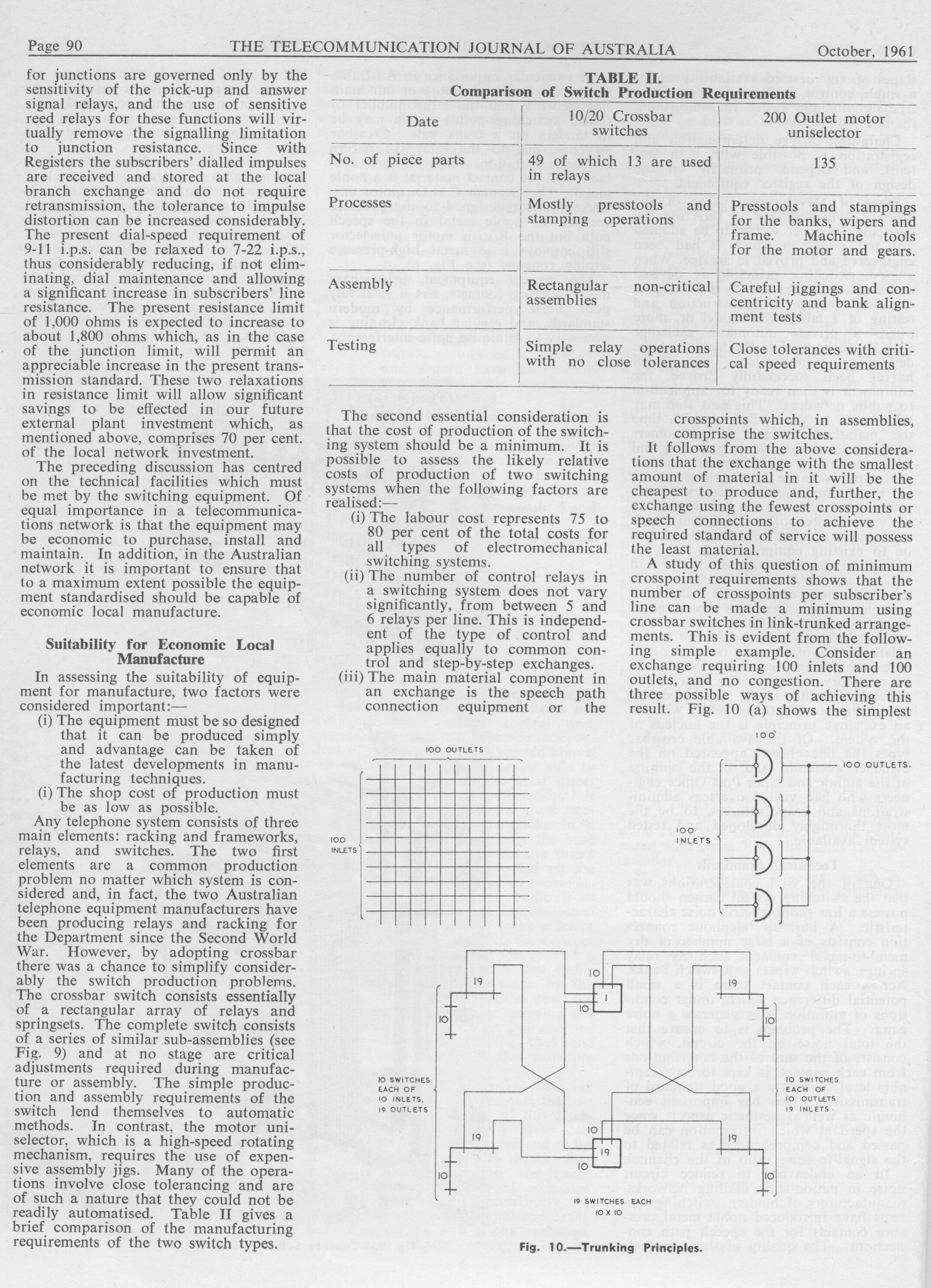

Sixth page of historical paper

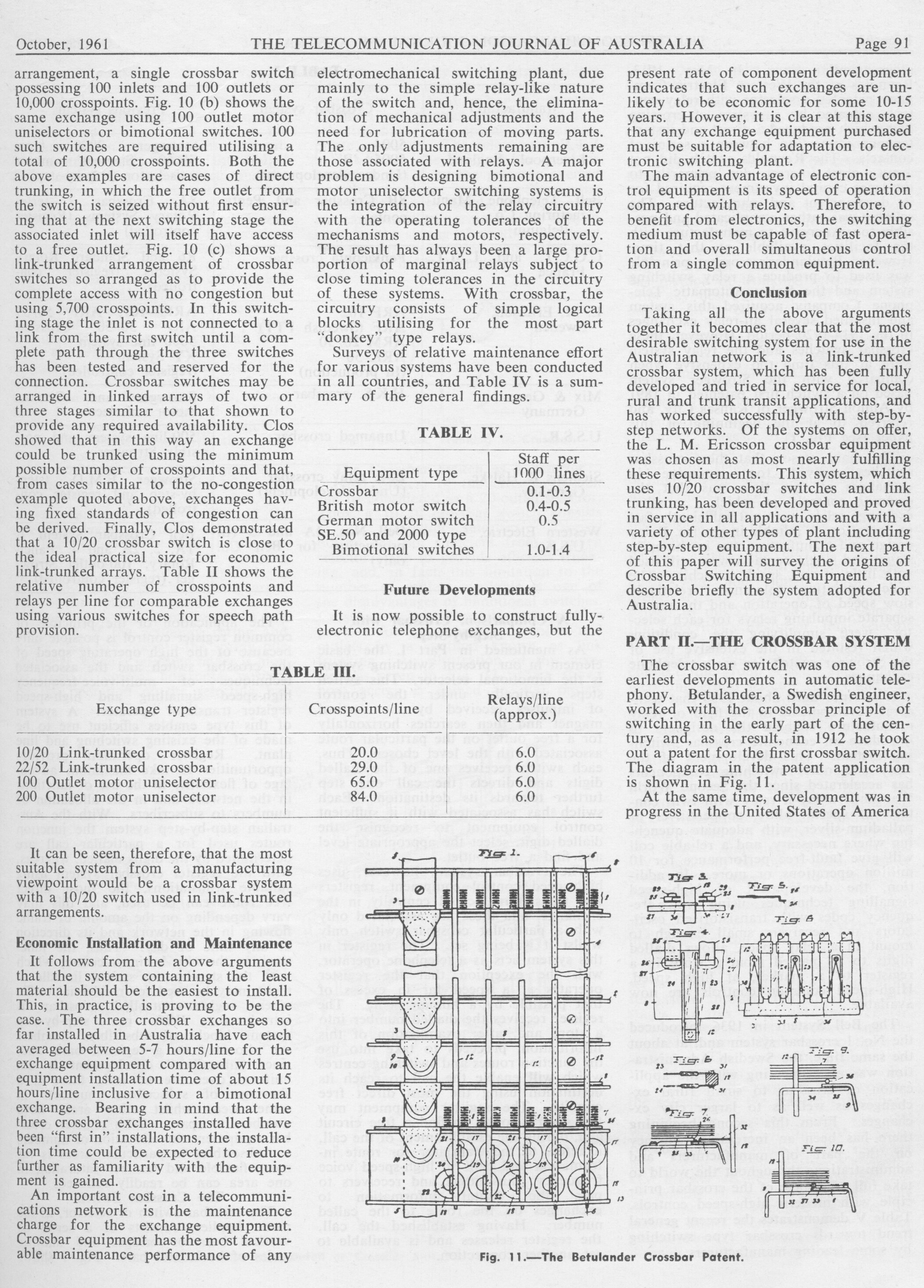

Seventh page of historical paper

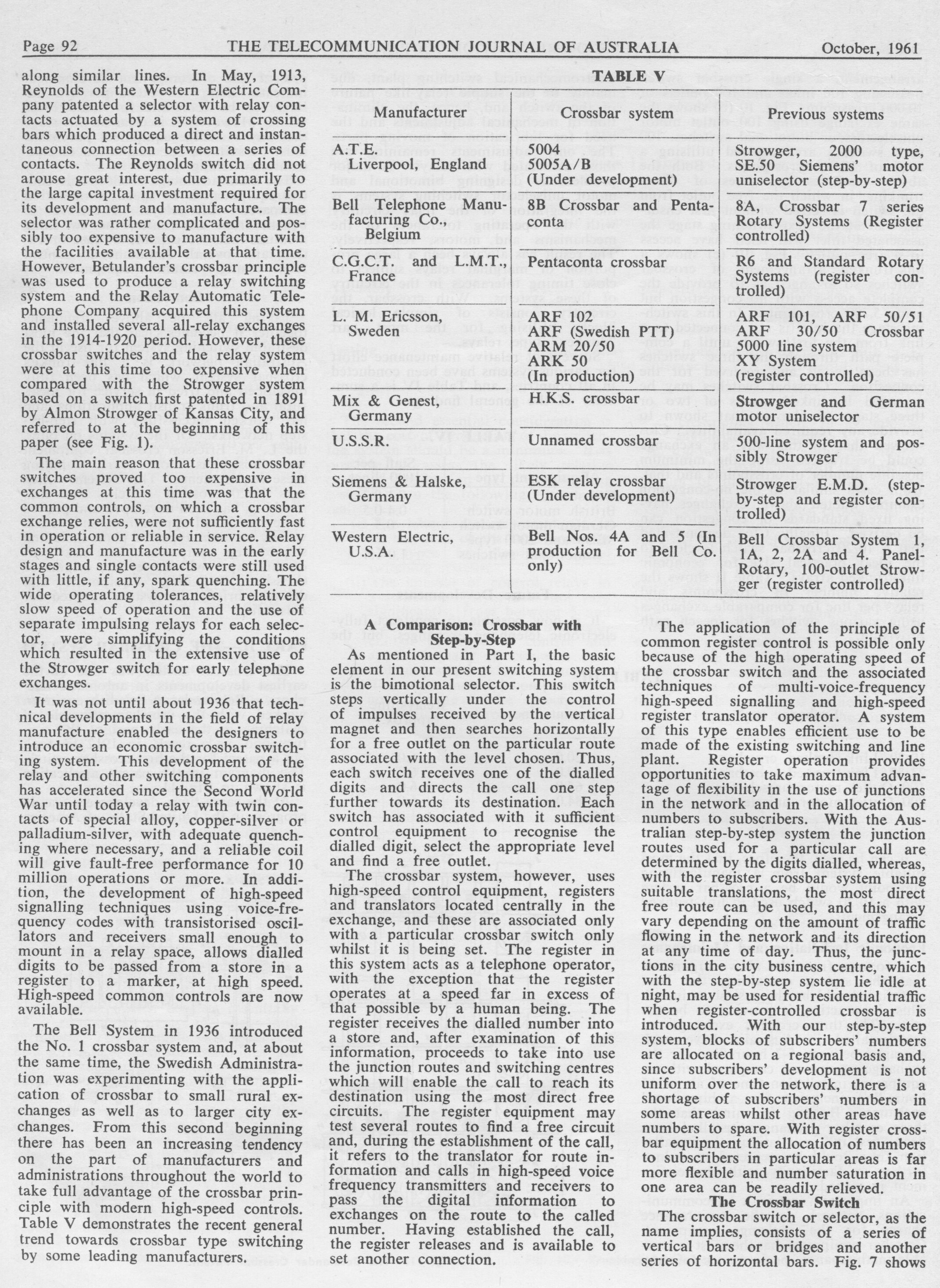

Eighth page of historical paper

Ninth page of historical paper

Tenth page of historical paper

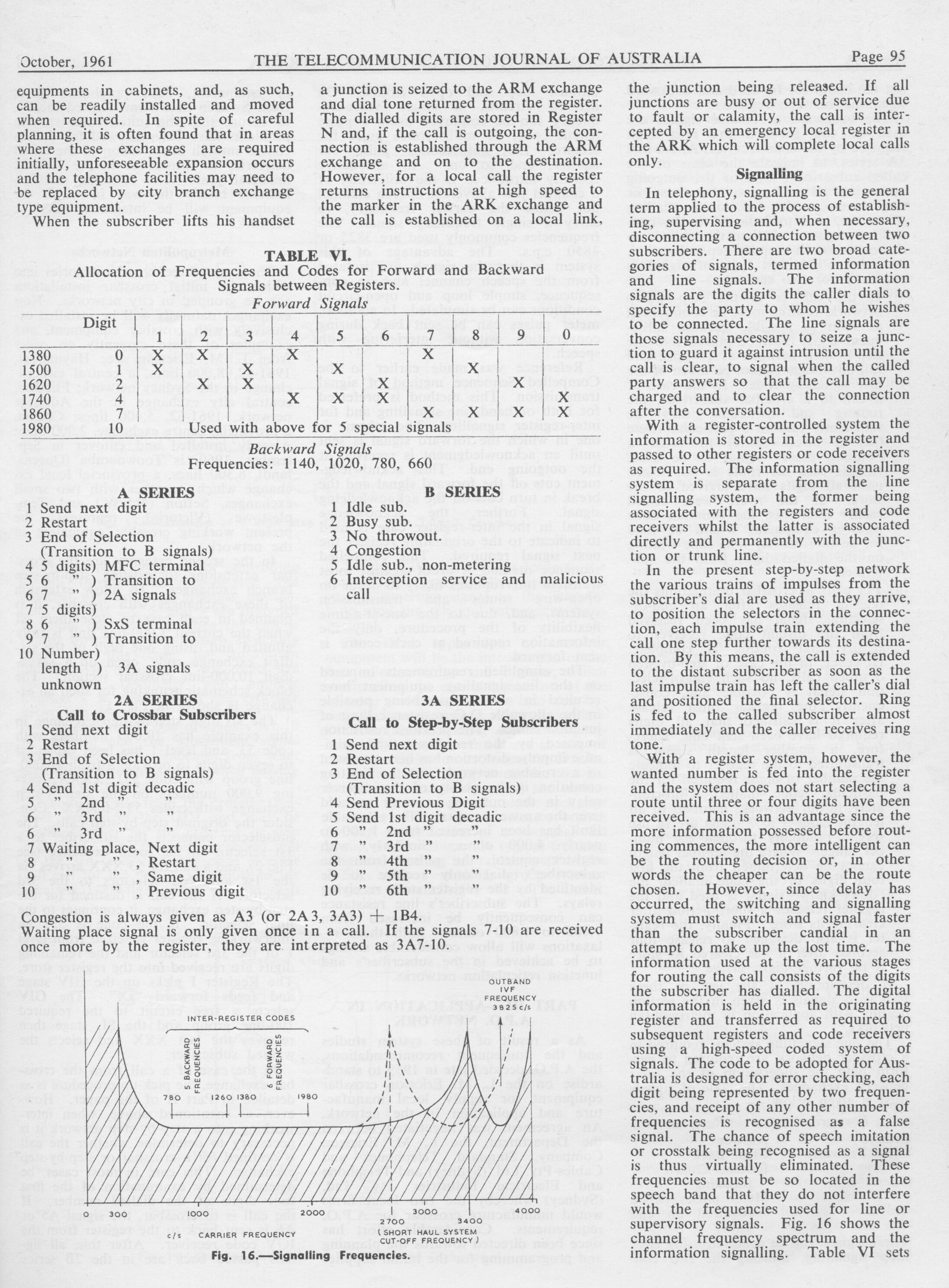

Eleventh page of historical paper

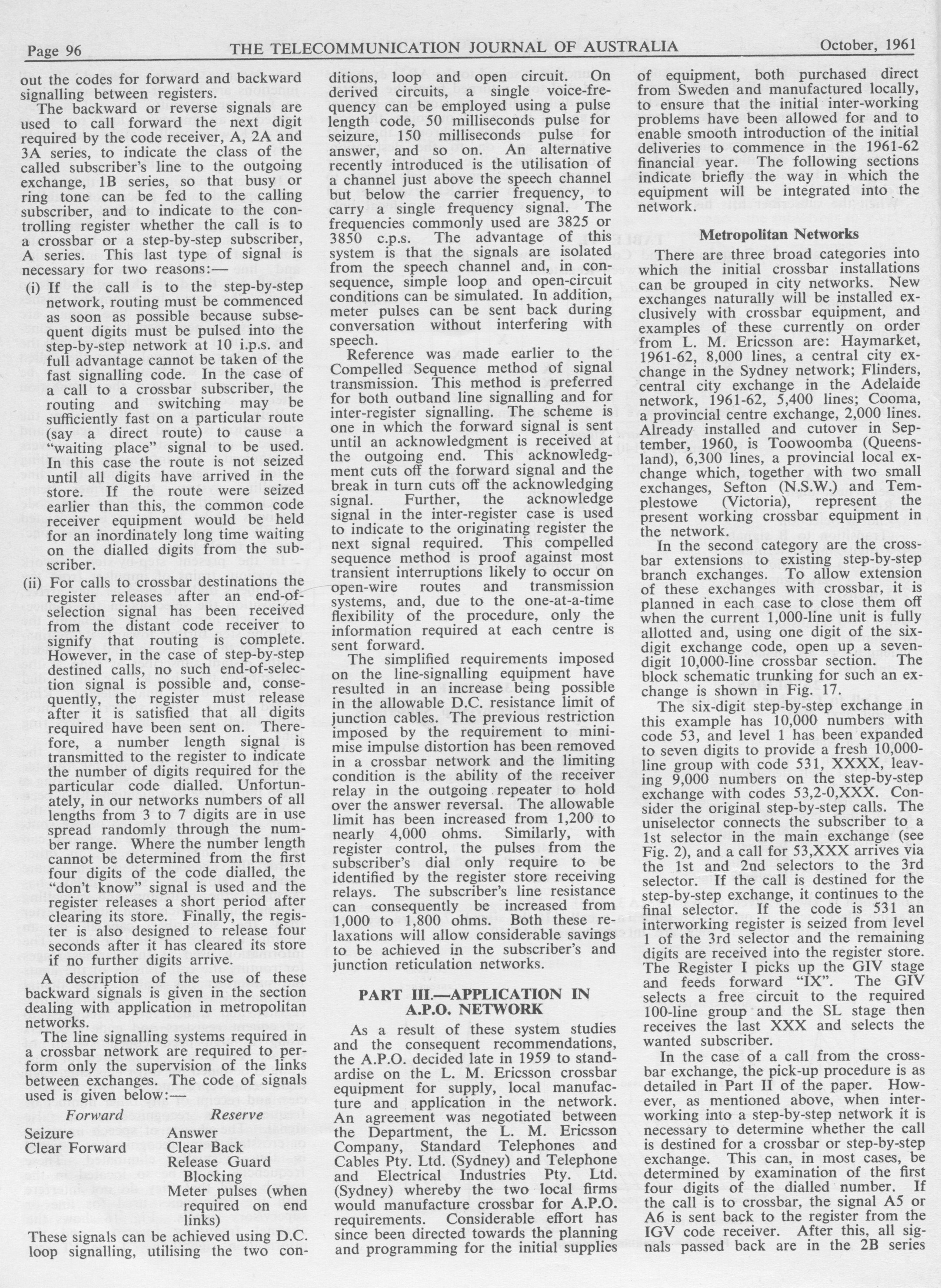

Twelfth page of historical paper

Thirteenth page of historical paper

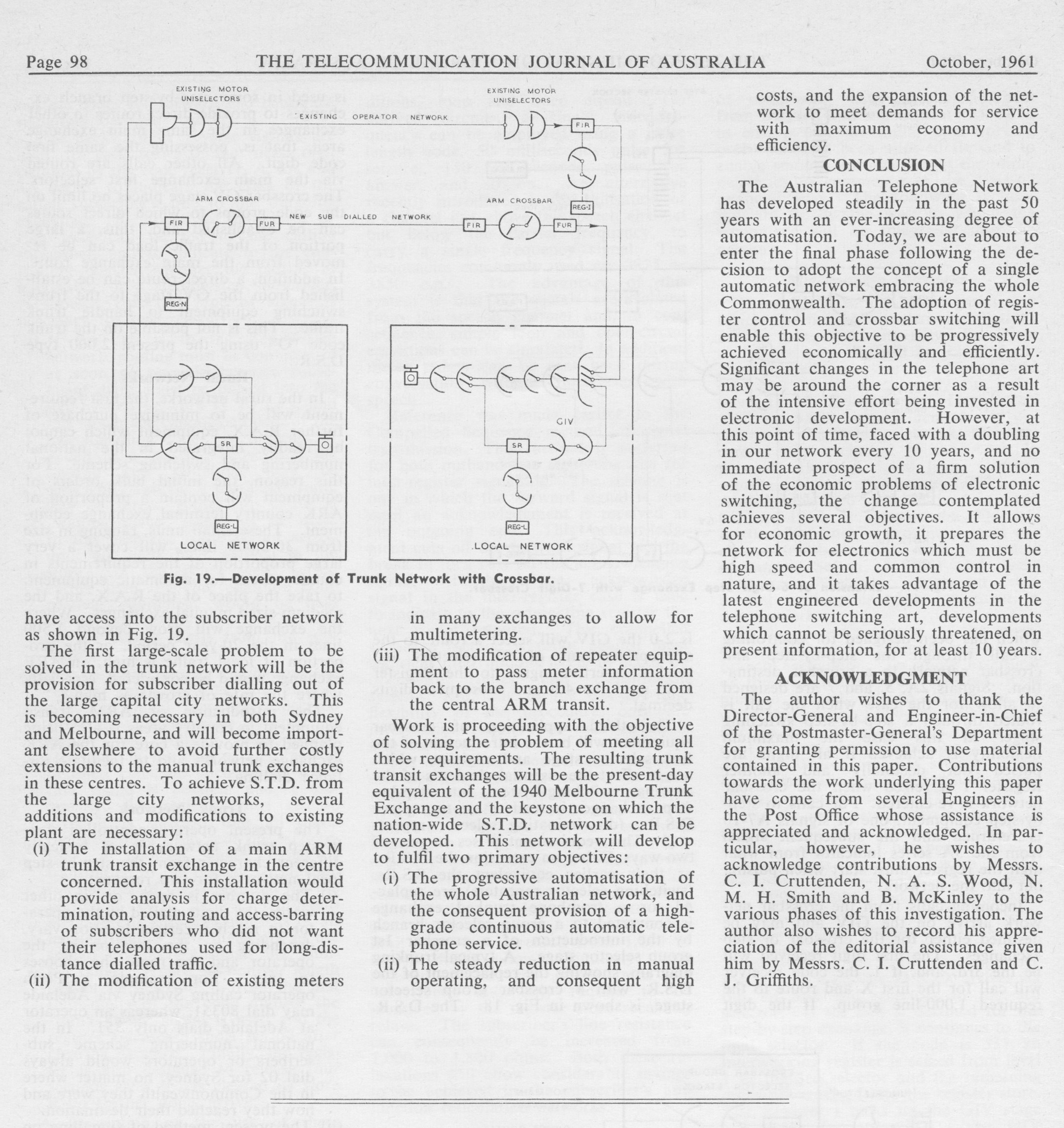

Fourteenth page of historical paper
